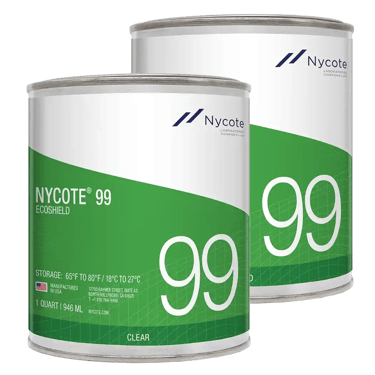

Nycote 99 EcoShield
Nycote® 99 EcoShield is an advanced nylon-epoxy coating designed for high-performance protection in aerospace, electronics, medical, and industrial settings. Building on the trusted Nycote® 7-11 formula, EcoShield offers improved adhesion, extended shelf life, and a low-VOC, environmentally conscious composition. Its smooth, self-leveling finish forms a pinhole-free barrier that resists corrosion, friction, and chemical exposure—even in the most demanding environments. Tested to meet rigorous outgassing standards, Nycote® 99 EcoShield is ideal for applications where reliability is mission-critical.
/Product%20Page%20Assets/99Group-1.webp?width=375&height=375&name=99Group-1.webp "99Group-1")
A Legacy of Protection, Reinvented for the Environment
Nycote® 99 EcoShield is our formulation based off Nycote 7-11. 99 EcoShield is a highly crosslinked multipolymer nylon epoxy coating. Trusted since the 1960’s by all major OEM’s to provide an excellent permanent barrier from harsh environments. The Nycote formulation is chosen over other coating technologies because of its unique ability to cure pinhole-free and self-level. The process allows for complete encapsulation of the part and will protect for years due to the strength of the epoxy and flexibility of the nylon polymer. Nycote 99 meets the standards for outgassing per ECSS-Q-ST-70-02
Product Details
Product Specifications
+| Physical Properties: Temperature Range from -70°F to +300°F (-57°C to 149°C) | ||
|---|---|---|
| Physical Properties | Resin | Film |
| Viscosity: @ 72°F Zahn #2 Cup | 50-90 Seconds | N/A |
| Solids Content (non-vol.) | 19% | N/A |
| Flash Point: C.O.C | 70°F | N/A |
| Shelf Life @ 75°F | Six Months | N/A |
| Film Thickness, 1 Dipcoat | N/A | 0.5 mil |
| Coverage Per Gallon | 300 sq. ft. | N/A |
| Tack-Free Time, 50% RH @ 70°F | N/A | One Hour |
| Film Pencil Hardness | N/A | 1-H |
| Adhesion ASTM D4541-09 (pull-off stress) | N/A | 1200 p.s.i. at temperaturesof -70°F to +400°F (-57°C to +149°C) |
| Abrasion Resistance – (500 Gr. #17 wheel 100 cycles) | N/A | 3.0 mgm |
| Adhesion to ASTM D3359-5B | - | 0% affected at180 pull |
| Scratch Hardness – 1000G Load | - | - |
| Airbus Fuel Resistance to ISO 1817 – No separation or cracks of ID Labels | - | Pass |
| Color shade to ASTM 4471 & Airbus spec(DAN1172/1174) Transparent liquids | - | Pass |
| Sheer Strength | - | > 3.9 |
| Elongation Break | - | > 200 |
| Heat Force Cure * Always check with your own internal engineering department to ensure materials you intend to force cure can withstand the temperatures listed on the Nycote table | - | 2-HR |
| ASTM 2832 – Solids Content Non-volatile | - | Pass |
| UVB @300 hours Resistant to ASTMG154-No degradation of the coating /Nylon will yellow slightly over time | - | Pass |
| Evaluation of ASTM D5264 standard Sutherland Rub testing to gauge the amount of scuffing or abrasion caused during shipping, handling, and storage. TEST REPORT: SN 2206163 Rev. 01 | - | - |
Fluid Resistance
+| Fluid Resistance – 30 days immersion @ 75°F | |
|---|---|
| JP-4 | Excellent |
| JP-5 | Excellent |
| JP-8 | Excellent |
| JP-10 | Excellent |
| Kerosene | Excellent |
| Gasoline | Excellent |
| Skydrol® | Excellent |
| 100% RH @120°F | Excellent |
| Distilled Water | Excellent |
| Tap Water | Excellent |
| Salt Spray | Excellent |
| 80% JP-4 Bacteria Laden Distilled Water | Excellent |
| H2O Immersion Composite (Submersed 7 days)** | Excellent |
| H2O Immersion Metal** | Excellent |
| Potassium Formate Submersion 24-hours | Excellent |
| Potassium Acetate Submersion 24-hours | Excellent |
Adhesion Characteristics
+| Untreated Aluminum | Excellent |
| Chem-filmed (Irridited) Aluminum | Excellent |
| Anodized Aluminum | Excellent |
| Stainless Steel | Excellent |
| Fiberglass | Excellent |
| Zinc Chromate Primed Aluminum | Excellent |
| Any Metal Surface | Excellent |
| Adhesion SAE-AMS-S-4383 and MCS9001C | Excellent |
| Glass | Excellent |
| Carbon Composites / Tin / Vinyl | Excellent |
| PTFE / Viton / TPU | Excellent |
| Adhesion measuring by adhesion tape testJAW ISO 2409 Dry Test Classification(0 indicates best performance on a scale f 0-3)** | Result 0 |
Special Properties
+| ECSS-Q-ST-70-02 Outgassing | Compliant (RML < 1,00%, CVCM< 0,10%) |
| Fungus Testing ASTM G21 | |
| HCV-Virucidal efficacy of treated or impregnated surface | |
| ISO22196 Coating efficacy to microorganisms S. Aureus ACCT6538 & E. Coli ACCT9739.Effectively kills microbes. | 99.99003% Kill |
| Permeation Testing to: | MIL-DTL-5578D Aircraft Fuel Tanks Self Sealing;MIL-DTL-27422F Fuel Tank Crash & Ballistic Resistance;MIL-T-52983G Fuel Tanks Fabric Collapsible |
| ECSS-Q-ST-70-02 Outgassing compliant (RML < 1,00%, CVCM< 0,10%)Fungus Testing ASTM G21 HCV-Virucidal efficacy of treated or impregnated surface ISO22196 Coating efficacy to microorganisms S. Aureus ACCT6538 & E. Coli ACCT9739.Effectively kills microbes. 99.99003% KillPermeation Testing to: MIL-DTL-5578D Aircraft Fuel Tanks Self Sealing;MIL-DTL-27422F Fuel Tank Crash & Ballistic Resistance;MIL-T-52983G Fuel Tanks Fabric CollapsibleIPC-CC-830C – Qualification and Performance of Electrical Insulating Compound for Printed Wiring Assemblies | Insulating Compound for Printed Wiring AssembliesMeets Florescent IPC-CC-830C–MATERIALS/CURE/ FLUORESCENCE/APPEARANCEIPC-CC-830C– paragraphs 3.5.1 ASTM D1084 – Standard Test Methods for Viscosity of AdhesivesIPC-CC-830C– paragraphs 3.3.2 – Shelf-lifeIPC-CC-830C– paragraphs 3.5.5 IPC-TM-650 Method 2.4.5.1 – FlexibilityIPC-CC-830C– paragraphs 3.5.6UL 94 HB – FlammabilityIPC-CC-830C– paragraphs 3.6.1 IPC-TM-650 Method 2.5.7.1 – Dielectric withstanding voltageIPC-TM-650 method 2.6.3.4A – Moisture and insulation resistanceIPC-CC-830C para. 3.7.2 IPC-TM-650 method 2.6.7.1 – Thermal shockIPC-TM-650 method 2.6.3.7 – Hydrolytic Stability |
Storage Temperature Requirements
+- Store at 70°F (21°C). Keep away from fire or flame.
- Note: Ideal storage temperature is 70°F (21°C); acceptable storage range is between 65°F to 80°F (18.3°C to 26.7°C). Storing below 65°F (18.3°C) may cause cloudiness or gel; heat at 180°F (82°C) for two hours. This should restore the product to its normal liquid condition. If possible, re-verify viscosity with Zahn #2 cup (50-90 seconds).
- Nycote® 7-11 Dark Blue has a six-month shelf life. The container can be opened, applied and then re-sealed for a period of six months. The storage temperature should be maintained for the entire shelf life period. The container must always be stored in an upright position. If the storage temperature is not the ideal, nor within the acceptable range, the result may change the nature of the Nycote®product, as well as, causing cloudiness of the liquid. At all times, the product should be kept from freezing.
Cure Time Table
+Allow one to two hours to become tack free. In dry air allow 72 hours at room temperature for full cure or:
- Heat twelve hours @ 120°F (49°C)
- Heat eight hours @ 150°F (66°C)
- Heat four hours @ 180°F (82°C)
- Heat two hours @ 220°F (105°C)
- Cure film temperature range is -70°F to +400°F (-57°C to 204°C)
OEM Product Specifications / ASTM Testing Standards
+OEM/Specs:
- BS7225
- DMS1850
- DWG55135
- ESE RPT-7456-015
- FED-STD-141
- MC5014
- MC9014
- MIL-DTL-27422F
- MIL-DTL-5578D
- MIL-H-5606
- MIL-I-46058
- MIL-T-52983G
- NAS1611
- NAS1613
- PCS5157
- SAE-AMS-22725
- SAE-AMS-S-4383
- SAE AMS-S-8802
- PPS 9.06 – Electrical bonding and grounding of aircraft structures
Standards:
- ASTM D445
- ASTM D1084
- ASTM D-1400
- ASTM D-1475
- ASTM 2832
- ASTM-B117-11
- ASTM D-1310
- ASTM D4060
- IPC-TM-650
- ISO-1817
- ISO-9116
- ECSS-Q-ST-70-02 Outgassing for space applications
- ISO22196 effective against bacteria
- ASTM G21 anti-fungus
- IPC-CC-830C electrical insulation conformal coating for electronics
- ASTM D471
- ASTM D7901
- Method 6192
